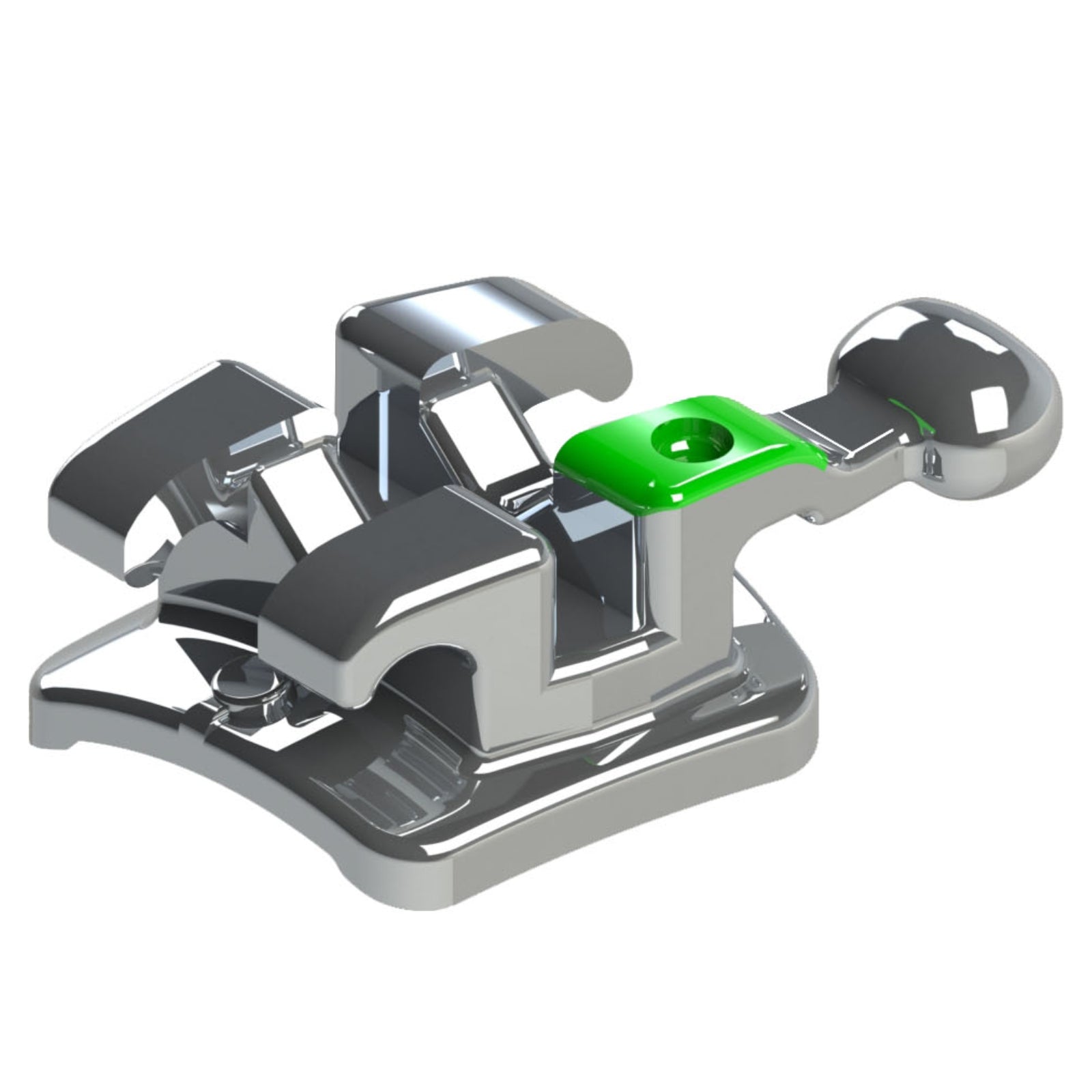

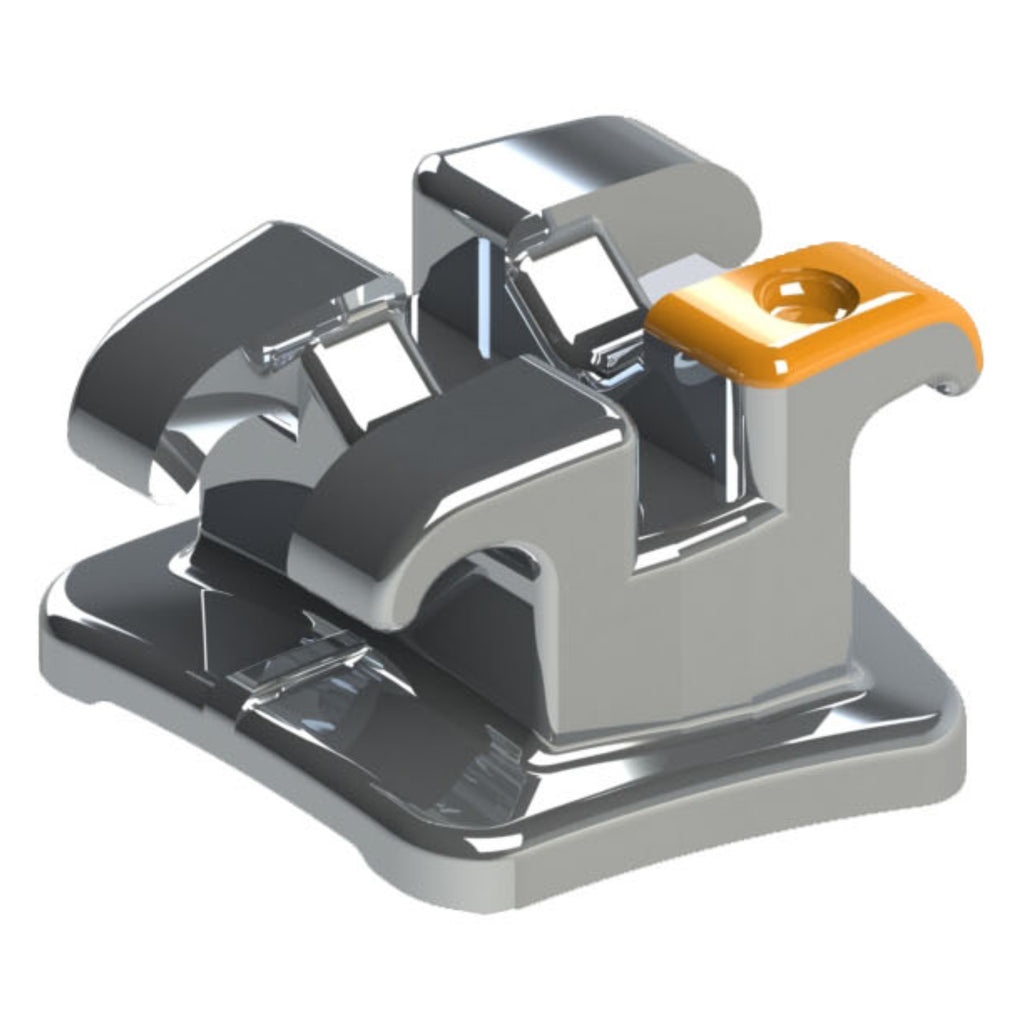

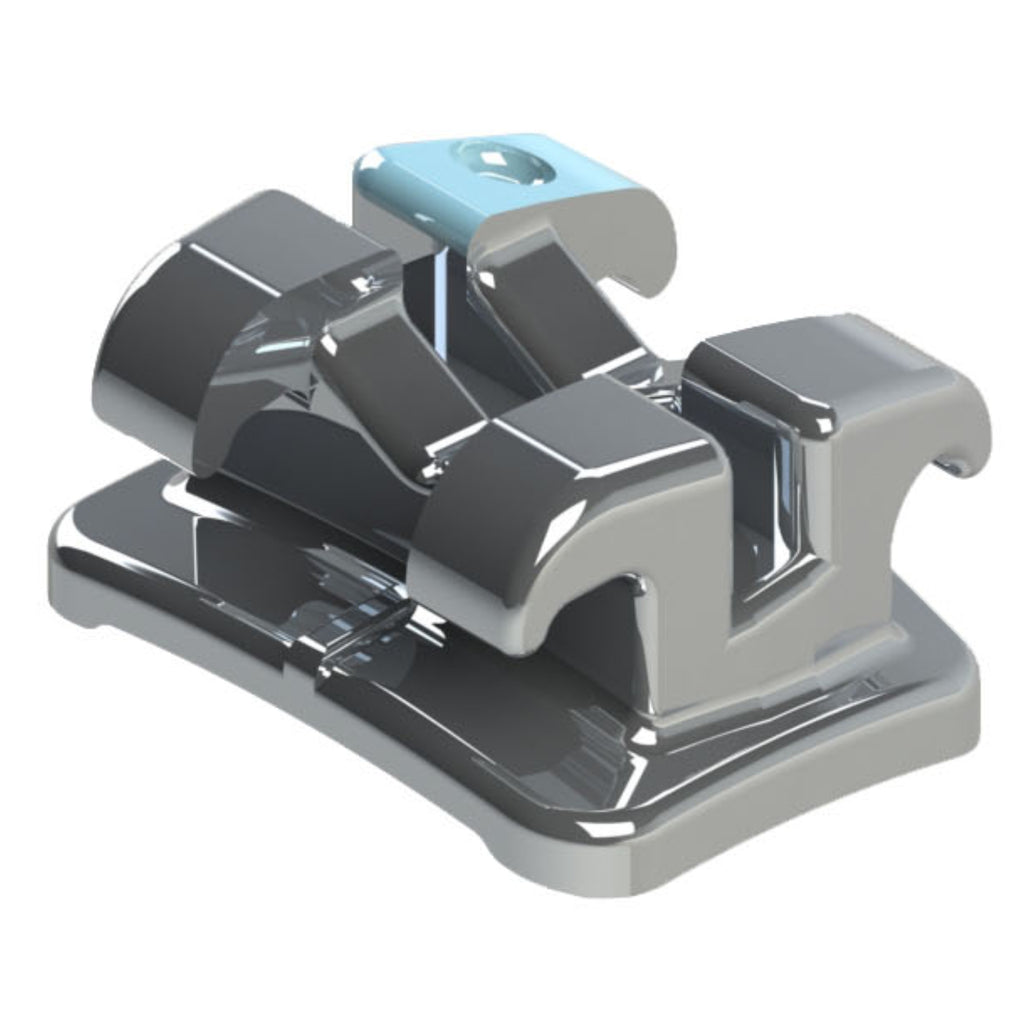

Bracket Prescription Roth .018" & .022'' - Max

Roth Max .018" & .022'' Can. 13°Ang. Hook Can./Bicusp.

APPLICATION:
Indicated for the treatment of dental malocclusions.

BENEFITS:
Specially designed to withstand the stresses of mastication, MAX Brackets are solidly constructed through -MIM molding, metallic powder injection molding is an established and proven manufacturing technique for producing small, complete, close-tolerance metal parts. and high performance. This translates into control of orthodontic forces without forgetting the delicacy of aesthetics.

FEATURES:
Base with cervico-occlusal and mesiodistal curvatures, which improve accommodation to the tooth during bonding. Molded base, with square pegs and sandblasted, where recent tests have shown superior bonding strength to brackets with mesh bases. "Dug" claws for better accommodation of elastic bandages and ligatures. Central marking in "V", to facilitate the positioning of the instrument, and the alignment of the bracket along the long axis of the teeth during bonding. Slot with rounded edges that favor the movement of the arches, even in cases of crowding and severe unevenness.

Bracket Prescription Roth Max .022" 11:

Torque = +12° / Angle = +5° / Length = 3.2mm

Bracket Prescription Roth Max .022" 12:

Torque = +8° / Angle = +9° / Length = 2.5mm

Bracket Prescription Roth Max .022" 22:

Torque = +8° / Angle = +9° / Length = 2.5mm

Bracket Prescription Roth Max .022" 13 13° Ang. Hook:

Torque = -2° / Angle = +13° / Length = 2.9mm

 Bracket Prescription Roth Max .022" 23 13° Ang. Hook:

Torque = -2° / Angle = +13° / Length = 2.9mm

Bracket Prescription Roth Max .022" 14,15 Hook:
